Engine management
Overview

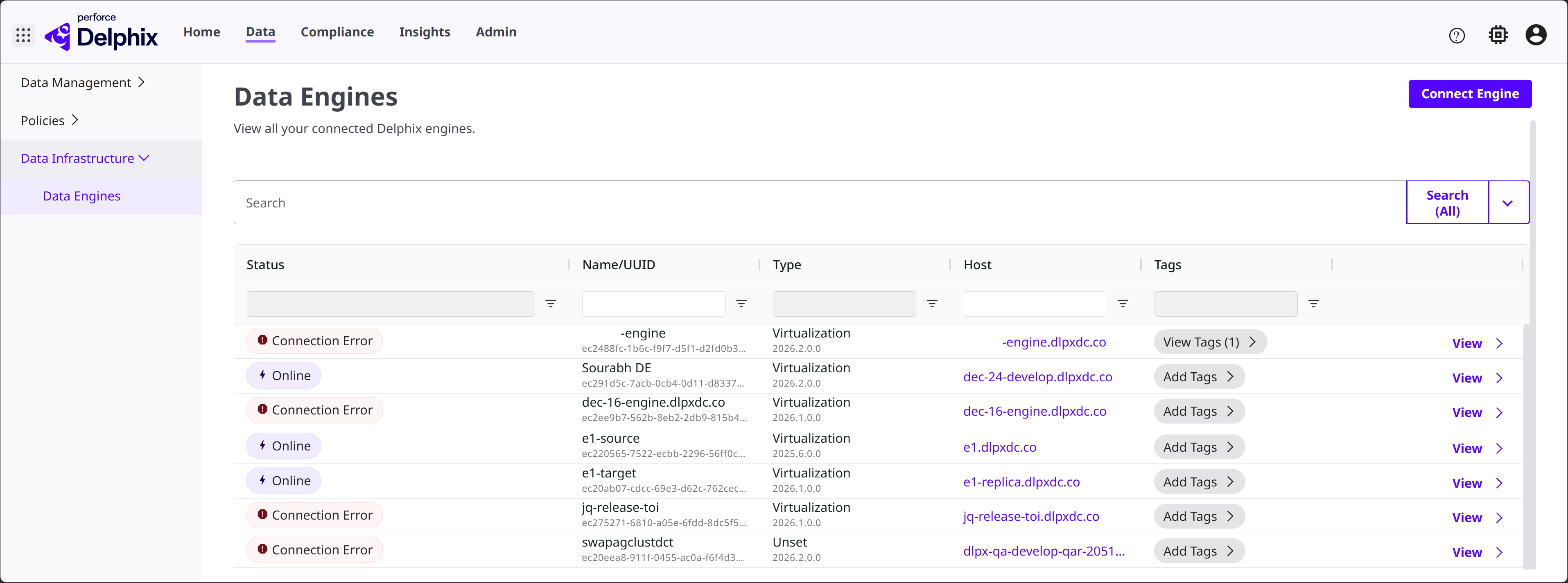

In the DCT UI, select Data at the top of the page. Expand Data Infrastructure on the left side, then select Data Engines. This page will show all of the DCT-connected Continuous Data Engines in a table, with columns showing information like Status, Name/UUID, Type, Host, and Tags. You can also add a new connection with the Connect Engine button.
From the Data Engines table, click the View button next to a listed engine to see its corresponding details page. The Engine details page is a vast collection of data and information shown across categorized tabs. For a full breakdown of what you can expect to find, visit Engine details page.
Connect Engine wizard
To add a new Data Engine, select the Connect Engine button in the top-right corner. The connection wizard will open with some sections to configure.

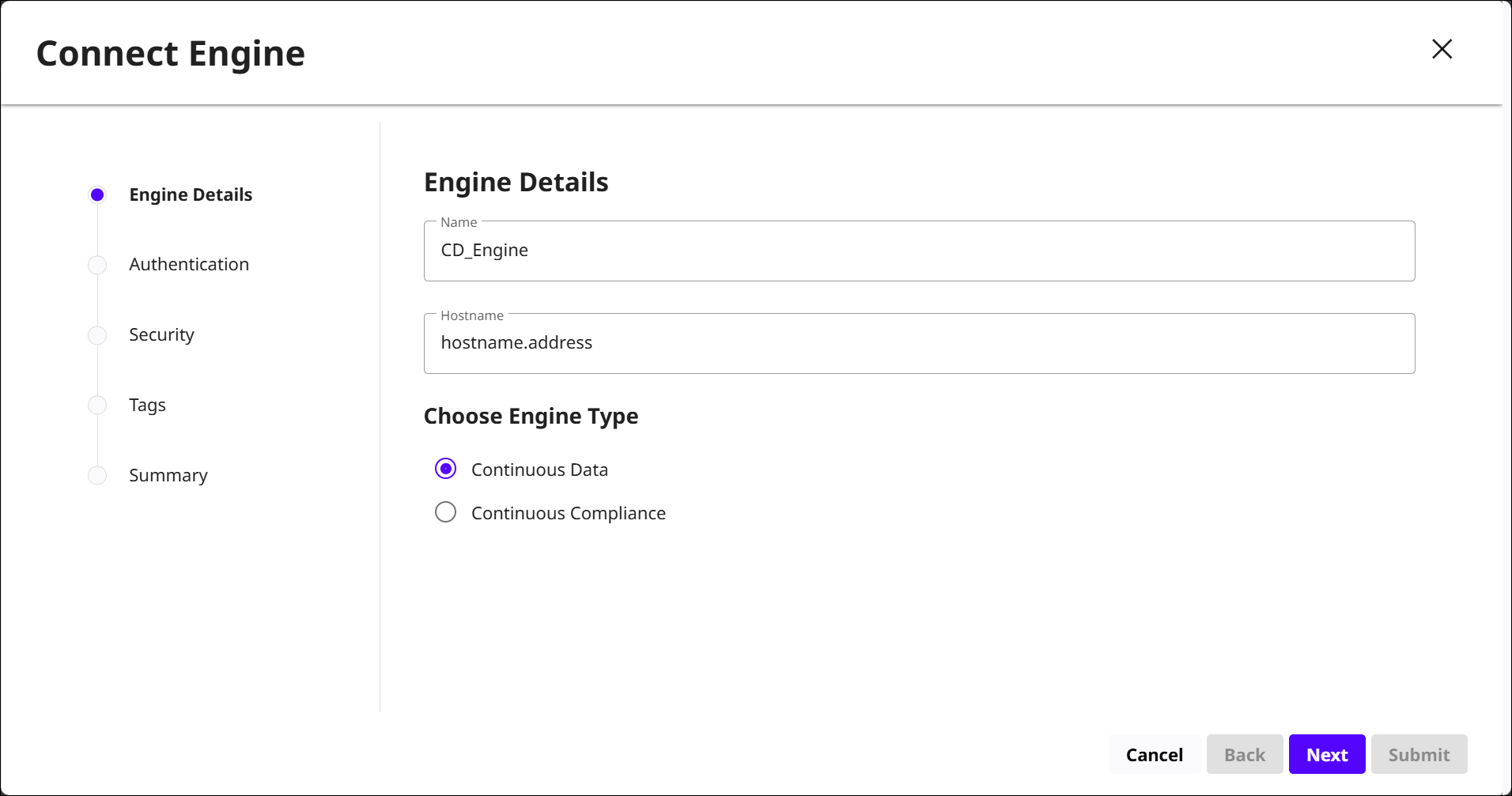

Engine Details
In the first section of the wizard, enter the Name and Hostname of the engine being connected. Then, select whether this is a Continuous Data or Continuous Compliance Engine.
For this topic, Continuous Data configurations will be shown.

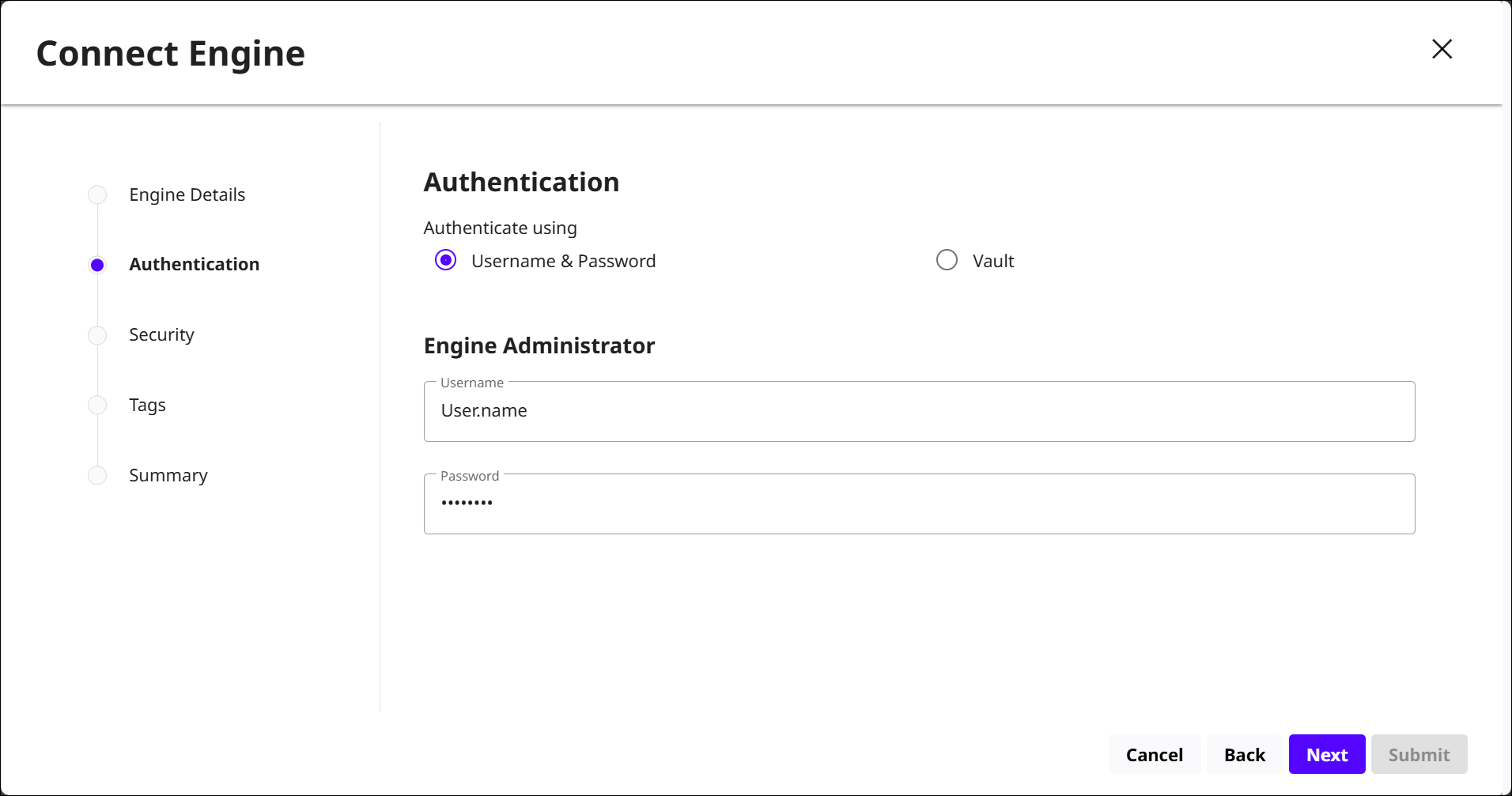

Authentication
Choose how the engine will be authenticated. Username & Password credentials must be for an administrator of the engine being connected. These credentials are stored in DCT.

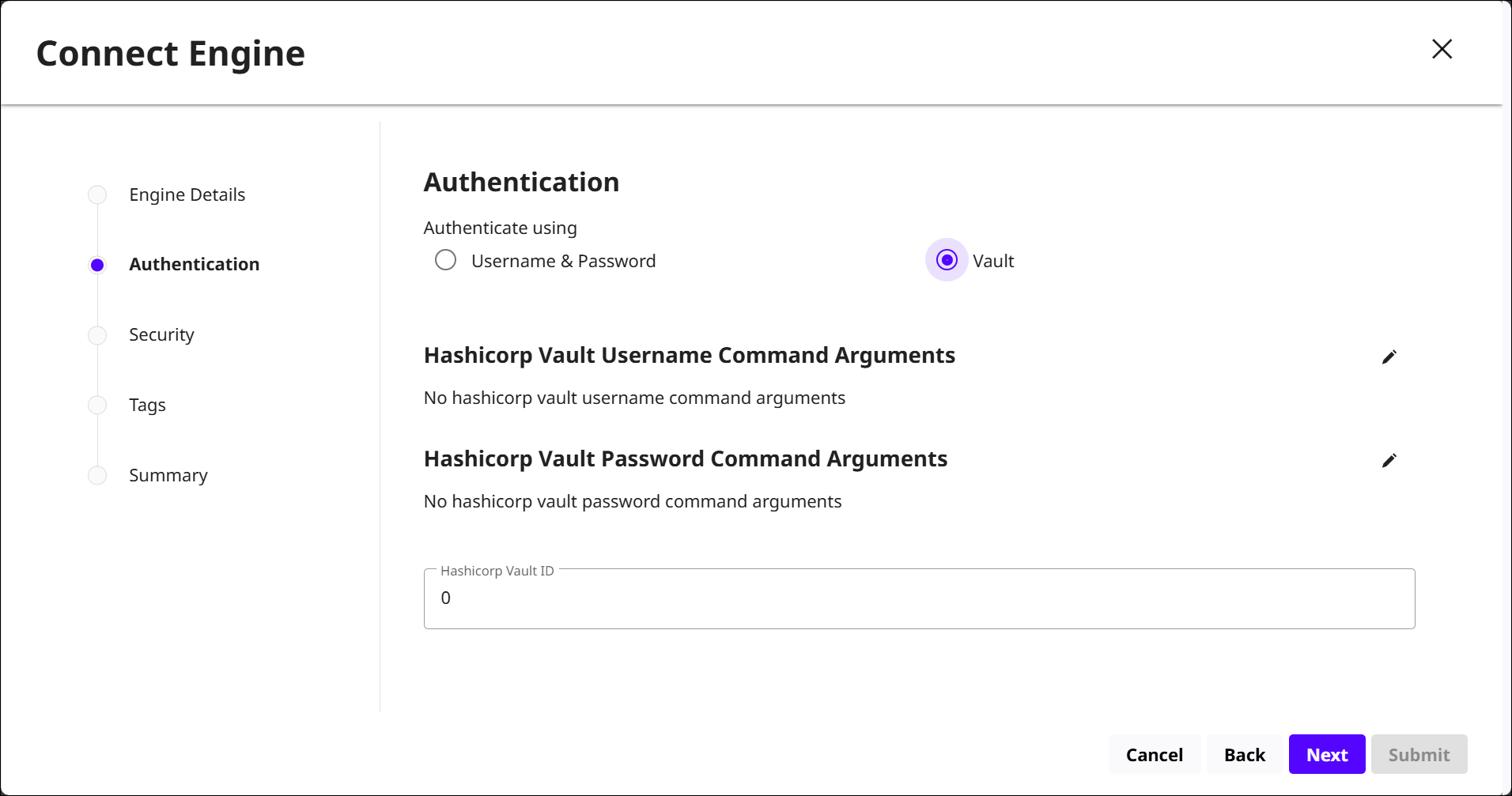

If Vault is selected, DCT will not store an engine username or password itself. Instead, it retrieves those credentials from a HashiCorp Vault instance that has already been registered in DCT. These parameters are defined by Username and Password Command Arguments and the HashiCorp Vault ID. Find out more about these parameters in the HashiCorp Vault topic.

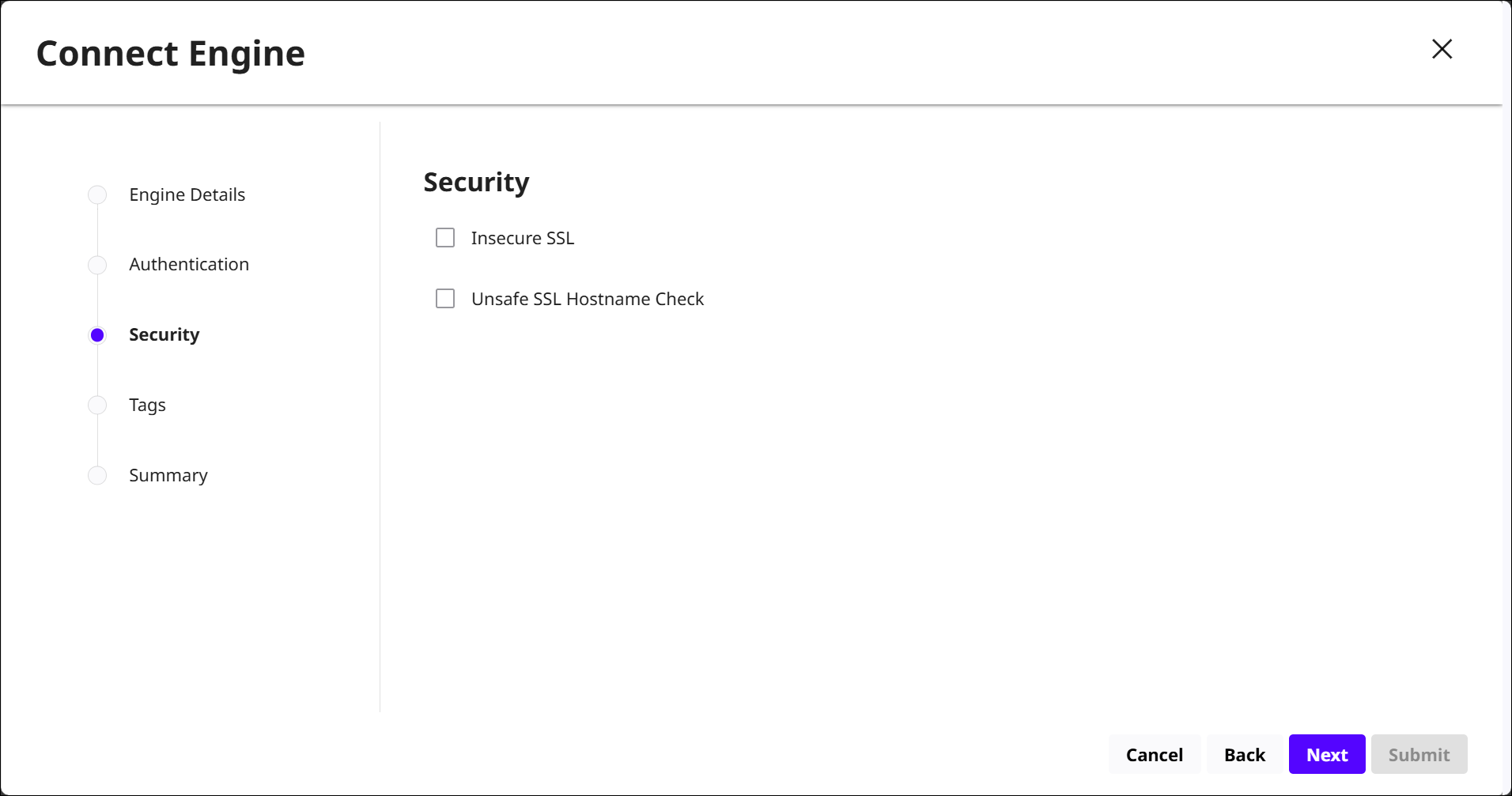

Security
When you register an engine with DCT, all communication between DCT and the engine happens over HTTPS. DCT will verify the engine’s TLS certificate and its hostname to prevent man‑in‑the‑middle attacks. If the engine’s certificate is not trusted or its hostname does not match what the certificate expects, the connection will fail unless you either fix the certificate or override the checks.
-
Insecure SSL: Allows DCT to connect to the engine without validating its TLS certificate.
ONLY USE for situations where the certificate cannot be validated and you accept the security risk.
-
Unsafe SSL Hostname Check: Allows DCT to ignore hostname mismatches in the engine’s certificate.
ONLY USE if the certificate’s hostname truly cannot be corrected. It weakens security and is automatically overridden if Insecure SSL is enabled.
Tags
Add any engine‑level tags, which behave like other DCT tags and will be applied to objects ingested from this engine. These are defined by a Tag Key and corresponding Tag Value.
The Add Tags to Discovered Objects section is for enabling auto‑tagging features, meaning DCT will automatically apply certain tags to objects it discovers on the engine. The UI warning is reminding you that enabling these options can unintentionally grant or restrict access, so permissions should be reviewed after enablement.

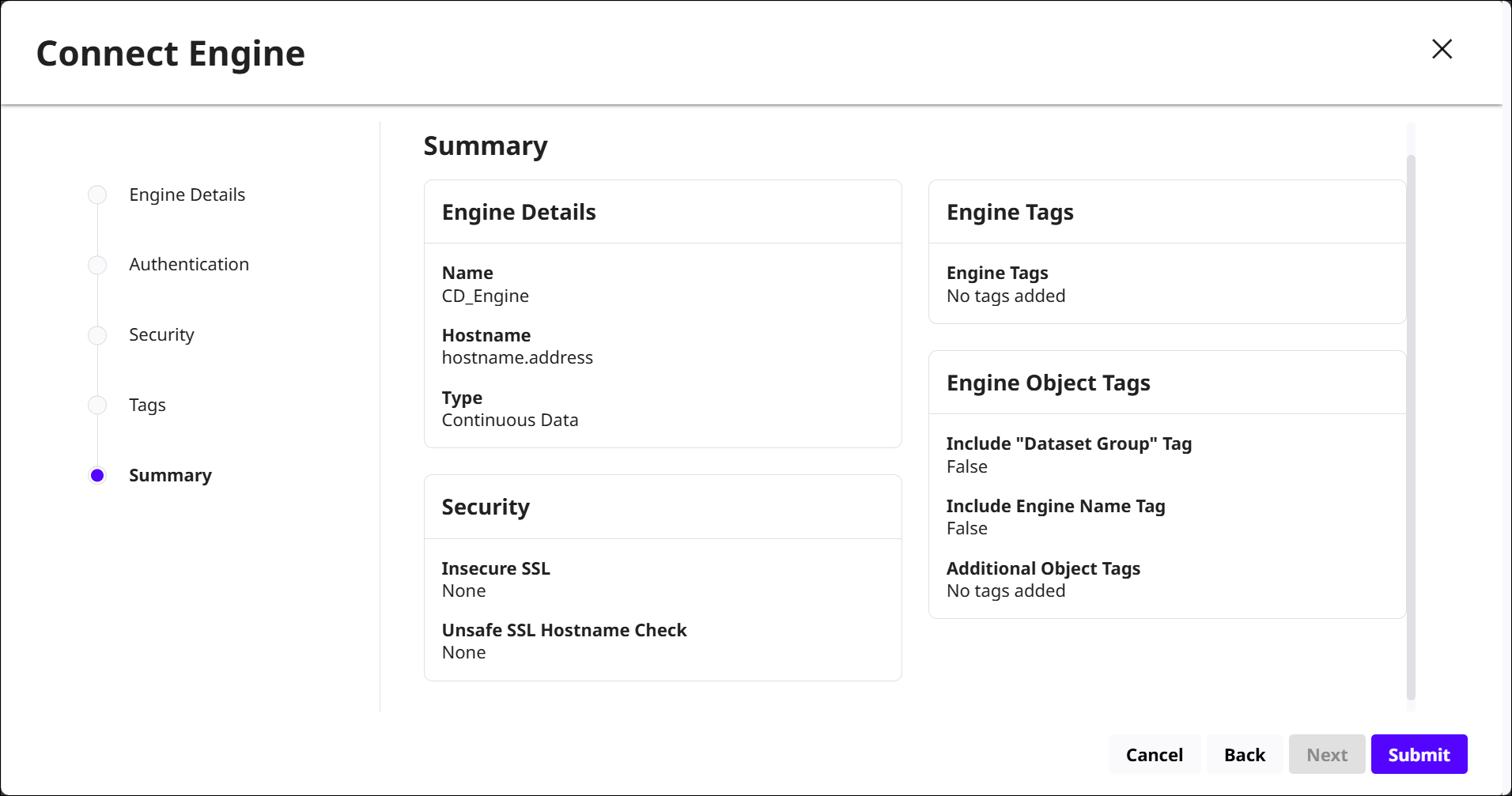

Summary
Review all of the configurations setup in each of the previous sections, then select to Submit the connection. The new engine connection will appear in the Data Engines list.
