Kubernetes

The Delphix Kubernetes (K8s) Driver enables Delphix administrators or application teams to provision and manage virtual data sets into containerized applications that are orchestrated in Kubernetes clusters. The virtual datasets provided by Delphix can endure, despite Kubernetes infrastructure and applications being ephemeral. This allows you to remain in complete control of your testable data without having to worry about rising infrastructure costs or mismanaged data.

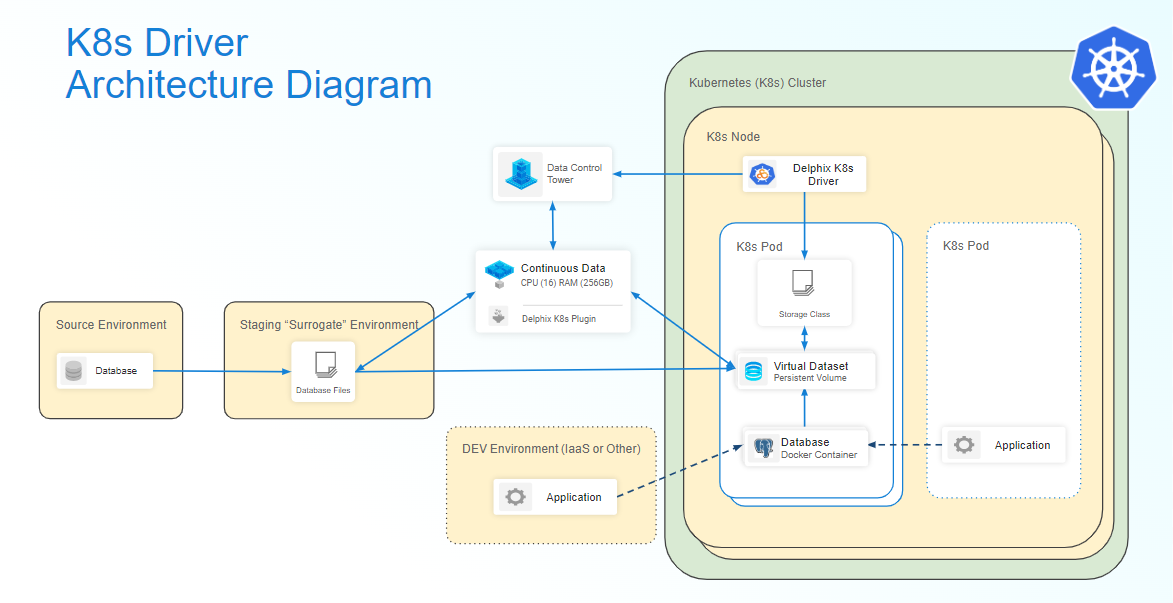

This solution mounts a pre-populated filesystem into a user-specified container pod. Internally, the solution leverages the standard Kubernetes concepts of Persistent Volume (PV) and Persistent Volume Claim (PVC). The Delphix K8s driver which leverages Container Storage Interface (CSI) driver standards, is generalized and thus is capable of supporting any database product that can be launched from a container and expects a single filesystem for its persistent storage tier. Delphix’s virtualization capabilities are integrated tightly into common Kubernetes commands.

You can expect the following benefits after implementing this solution:

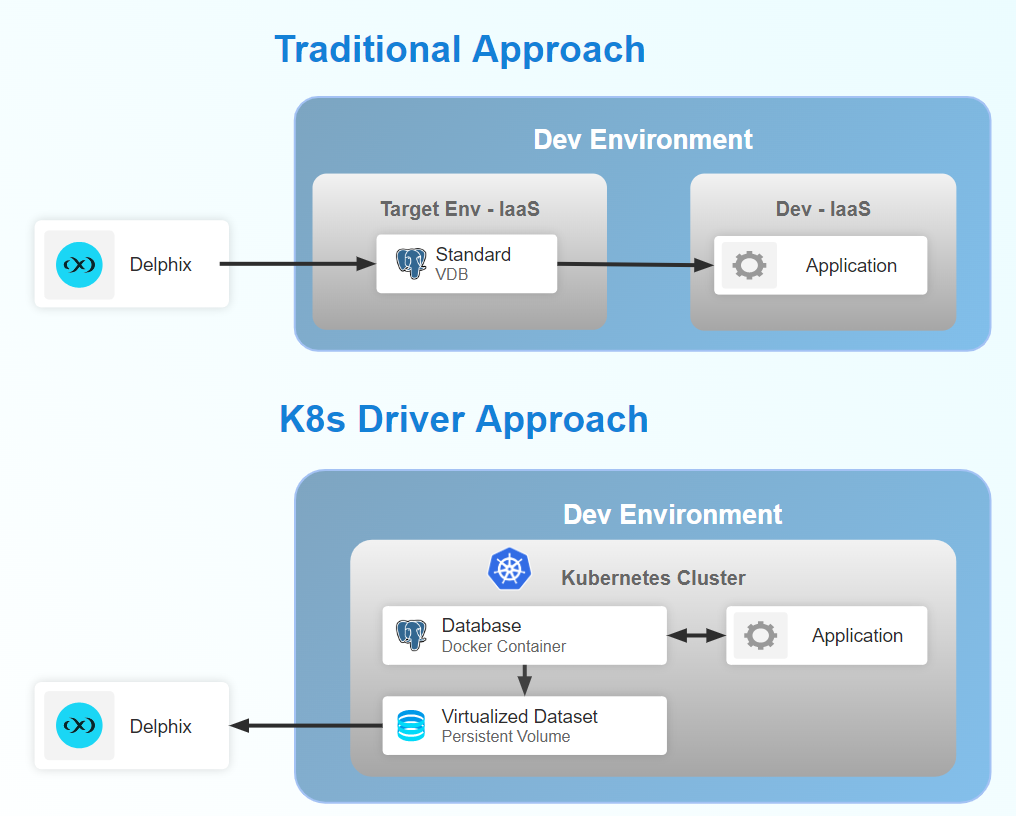

• Reduced infrastructure costs: The Delphix K8s Driver eliminates the need for target environments potentially saving infrastructure costs. In addition, integration with Kubernetes ensures the necessary infrastructure is always “right-sized” without any wasted resources, regardless of the provider.

• Improved agility: The driver is fully compatible with standard Kubernetes toolsets, such as Helm and kubectl. This means application teams and administrators can easily extend their existing processes and automation. You can quickly gain access to ephemeral, production-like datasets without context switching, manual intervention, and significant overhead.

• Centralized governance model: All datasets, containerized or not, are managed by the Delphix DevOps Data Platform. IT Administrators do not need to manage multiple toolsets that interface with different cloud and legacy platforms. Dataset access, authorization, and operations are managed within a single platform.

Getting started

Perform the following steps to implement the Delphix K8s Driver.

System requirements

The following components are required to configure the Delphix K8s Driver:

• Data Control Tower v12.0+

• Delphix Continuous Data v17.0+

• Delphix Kubernetes (K8s) driver installed in the K8s cluster

• Compatible Continuous Data Connector:

  • Oracle – Native engine install

  • PostgreSQL – v4.3.1+

  • K8s vFiles – v1.0+ with the Continous Data Kubernetes (K8s) plugin

• Surrogate Host Environment

• Helm v3.10+

• Container orchestration platform:

  • Azure Kubernetes Service (AKS) v1.25+

  • Amazon Elastic Kubernetes Service (EKS)v1.27+

  • Kubernetes v1.26+

Compatibility

The Kubernetes solution is composed of a K8s Driver and a compatible data connector. These two components can be managed separately. Ensure compatible installations are being used by following the below table.

* The K8s vFiles Connector operates similarly to the native Unstructured Files (vFiles) connector. However, this separate connector was required due to various K8s requirements.

Prerequisites

1. Install Data Control Tower (DCT) and Delphix Continuous Data. Ensure DCT is connected to Delphix Continuous Data and syncing properly. For more information, refer to Data Control Tower and Delphix Continuous Data Engine’s documentation.

2. Install the Kubernetes Driver plugin into Delphix Continuous Data. For more information, refer to the Installation section.

3. Ingest the source data into Delphix Continuous Data. For more information, refer to the Ingestion architecture section.

4. Install the Kubernetes driver and create the storage class. For more information, refer to the Installation section.

Once the prerequisites have been completed, perform the below steps via kubectl. The first set of steps demonstrates how to provision the virtual database (request the PVC) and then enable it (claim the PVC), while the second demonstrates how to shut it down.

Kubectl

Provision and enable (Postgre SQL)

1. Create a Persistent Volume Claim (PVC).

   kubectl apply -f <pvc-manifest>.yaml

2. Using the storage class created during installation, the <pvc_manifest.yaml> file specifies the new VDB to be provisioned. In addition to storageClassName, you will need to include the metadata.annotationsfrom General annotations in the PVC manifest.


   apiVersion: v1

   kind: PersistentVolumeClaim

   metadata:

     name: test-pg

     annotations:

       sourceDBName: aks-pg12

       envName: surrogate-host-env

       vdbGroupName: Untitled

       vdbRepositoryName: Empty vFile Repository

       vdbStageMountpath: /mnt/test-vdb

       engineName: myengine.delphix.com

   spec:

     storageClassName: de-fs-storage

     accessModes:

       - ReadWriteOncePod

     resources:

       requests:

         storage: 5Gi



3. Deploy the containerized database and request the Persistent Volume Claim (PVC).

kubectl apply -f <container-manifest>.yaml

The <container-manifest.yaml> file will enable the VDB and claim the persistent volume created in the prior step. Therefore, the created volume’s claimName should match the prior steps name value, and the volume should be mounted to the chosen container.

For example:

apiVersion: v1

kind: ConfigMap

metadata:

  name: postgres-config

  labels:

    app: postgres

data:

  POSTGRES_DB: postgresdb

  POSTGRES_USER: postgres

  POSTGRES_PASSWORD: postgres

  PGDATA: /mnt/mount/data

---

apiVersion: apps/v1

kind: Deployment

metadata:

  name: postgres

spec:

  selector:

    matchLabels:

      app: postgres

  template:

    metadata:

      labels:

        app: postgres

    spec:

      containers:

        - name: postgres

          image: postgres:12.7

          securityContext:

              runAsGroup: 999

              runAsUser: 999

              privileged: true

          imagePullPolicy: "IfNotPresent"

          ports:

            - containerPort: 5433

          envFrom:

            - configMapRef:

                name: postgres-config

          volumeMounts:

            - mountPath: /mnt/mount

              name: postdb

      volumes:

        - name: postdb

          persistentVolumeClaim:

            claimName: test-pg


---
apiVersion: v1
kind: Service
metadata:
  name: postgres
  labels:
    app: postgres
spec:
  type: NodePort
  ports:
   - port: 5433
  selector:
   app: postgres

Provision and enable (Oracle)

Requirements: A surrogate host (preferably RHEL) with a running Oracle 19c.

1. Create a Persistent Volume Claim (PVC).

kubectl apply -f <pvc-manifest>.yaml

The <pvc_manifest.yaml> file specifies the new VDB to provision based on the storage class created during the installation step. Therefore, the necessary properties listed in the General annotations in the PVC manifest and the Oracle annotations in PVC manifest sections need to be added to the manifest and a custom storageClassName

For example:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: orapvc
  annotations:
    sourceDBName: aks-ora19
    envName: surrogate-host-env
    vdbGroupName: Untitled
    engineName: myengine.delphix.com

           ownershipSpec: "54321:54321"

           # Oracle parameters

    surrEnvUserName: oracle

    oracleSID: mysid

    oracleServiceName: "oracle-database"

    vdbConfigTemplate: "ora-test-template"
spec:
  storageClassName: de-fs-storage
  accessModes:
    - ReadWriteOncePod
  resources:
    requests:
      storage: 10Gi

Optional: Other VDB values, such as a tag, can be added to the annotations section. See the Helm chart parameters page for a complete list.

For example,

annotations:
    ...
    tags: "exampletag1=examplevalue1, exampletag2= examplevalue2"    ...

2. Deploy the containerized database and request the Persistent Volume Claim (PVC).

kubectl apply -f <container-manifest>.yaml

The <container-manifest.yaml> file will enable the VDB and claim the persistent volume created in the prior step. Therefore, the created volume’s claimName should match the prior step’s name value, and the volume should be mounted to the chosen container.

The following requirements exist for the Oracle container manifest:

• For Oracle Docker images pulled from the Oracle Container Registry, you will need to provide RDBMS credentials which are used internally by the image. These credentials are added as a Kubernetes secret and are configured once and used within the manifest file as oracle-rdbms-credentials

  Use this command to create the Kubernetes secret:

  Copy

  kubectl create secret generic oracle-rdbms-credentials --from-literal=ORACLE_PWD=<db_password>

• ORACLE_SID in the container manifest should match the oracleSID in the PVC manifest.

• The values for runAsUser and fsGroup under spec.securityContext in the manifest yaml should match the ownershipSpec in the PVC manifest. This is used to mount the files using the default user ID for the oracle container

• Set the mountPath under spec.containers.volumeMounts and the POD_MOUNT_PATH environment variable under spec.containers.env to /mnt/provision/<oracle_sid>_<namespace>. The mountPath is created by the Oracle connector and is hardcoded in the .ini files.


  Note: If the namespace contains hyphens (-), replace them with underscores (_). For instance, hubs-driver becomes hubs_driver.

  For example:

  apiVersion: v1

  kind: ConfigMap

  metadata:

    name: oracle-rdbms-config

    labels:

      app: oracle-rdbms

  data:

    ORACLE_CHARACTERSET: "AL32UTF8"

    ORACLE_EDITION: "enterprise"

    ORACLE_SID: "mysid"

    CONTAINER_DB: "false"

  ---

  apiVersion: apps/v1

  kind: Deployment

  metadata:

    name: oracle-rdbms

    labels:

      app: oracle-rdbms

  spec:

    replicas: 1

    selector:

      matchLabels:

        app: oracle-rdbms

    strategy:

      type: Recreate

    template:

      metadata:

        labels:

          app: oracle-rdbms

      spec:

        securityContext:

          runAsUser: 54321

          fsGroup: 54321

        containers:

          - name: oracle-container

            image: container-registry-mumbai.oracle.com/database/enterprise:19.3.0.0

            command:

              - "/bin/sh"

              - "-c"

              - "export MOUNT_PATH=${POD_MOUNT_PATH}; export DATAFILE_DESTINATION=$MOUNT_PATH; $MOUNT_PATH/script/${ORACLE_SID}/start-k8s-vdb.sh"

            livenessProbe:

              exec:

                command:

                  - /bin/sh

                  - -c

                  - "MOUNT_PATH=${POD_MOUNT_PATH}; DATAFILE_DESTINATION=$MOUNT_PATH; $MOUNT_PATH/script/${ORACLE_SID}/check-k8s-vdb-status.sh"

              initialDelaySeconds: 120

              periodSeconds: 60

              timeoutSeconds: 10

              failureThreshold: 3

              successThreshold: 1

            readinessProbe:

              exec:

                command:

                  - /bin/sh

                  - -c

                  - "MOUNT_PATH=${POD_MOUNT_PATH}; DATAFILE_DESTINATION=$MOUNT_PATH; $MOUNT_PATH/script/${ORACLE_SID}/check-k8s-vdb-status.sh"

              initialDelaySeconds: 120

              periodSeconds: 60

              timeoutSeconds: 10

              failureThreshold: 3

              successThreshold: 1

            env:

              - name: POD_MOUNT_PATH

                value: "/mnt/provision/mysid_hubs_driver"

            envFrom:

              - configMapRef:

                  name: oracle-rdbms-config

              - secretRef:

                  name: oracle-rdbms-credentials

            ports:

              - containerPort: 1521

                name: oracle-listener

            volumeMounts:

              - name: oradata

                mountPath: "/mnt/provision/mysid_hubs_driver"

        imagePullSecrets:

          - name: ora-creds

        volumes:

          - name: oradata

            persistentVolumeClaim:

              claimName: orapvc

  ---

  apiVersion: v1

  kind: Service

  metadata:

    name: oracle-database

    labels:

      app: oracle-rdbms

  spec:

    type: NodePort

    ports:

      - name: listener

        port: 1521

    selector:

      app: oracle-rdbms

3. Once the containerized database is running, you can attach it to your desired application. That application can live in the same Kubernetes Node, a different Kubernetes Node, or a separate IaaS location.

Bookmark and snapshots

All Kubernetes volume snapshots are equivalent to Data Control Tower bookmarks. When you create or delete a volume snapshot, it creates or deletes an equivalent Data Control Tower bookmark. Follow the below steps to create and manage a snapshot. All configuration properties are available on the Helm chart parameters documentation page.

1. Create a Volume Snapshot Class

   kubectl apply -f volumesnapshotclass.yaml

   Sample volumesnapshotclass.yaml

   apiVersion: snapshot.storage.k8s.io/v1
   kind: VolumeSnapshotClass
   metadata:
    name: snapshot-storage-class
   driver: defs.csi.delphix.com
   deletionPolicy: Delete
   parameters:
     tagkey1: "examplevalue1"  tagkey2: "examplevalue2"

2. Create a Volume Snapshot (DCT Bookmark)

   kubectl apply -f volumesnapshot.yaml

   Sample volumesnapshot.yaml

   apiVersion: snapshot.storage.k8s.io/v1
   kind: VolumeSnapshot
   metadata:
    name: vdb-snapshot-example
   spec:
    volumeSnapshotClassName: snapshot-storage-class
    source:
      persistentVolumeClaimName: samplevdbname

3. Provision from a volume snapshot (DCT bookmark)

   kubectl apply -f pvc_usingsnapshot.yaml

   Sample pvc_usingsnapshot.yaml

   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: samplevdbnameusingsnapshot
     annotations:
       sourceDBName: dsourcename
       envName: surrogate-host-env
       vdbGroupName: samplegroup
       vdbRepositoryName: Empty vFile Repository
       vdbStageMountpath: /mnt/provision/samplemount
   spec:
     storageClassName: de-fs-storage
     dataSource:
       name: vdb-snapshot-example
       kind: VolumeSnapshot
       apiGroup: snapshot.storage.k8s.io
     accessModes:
       - ReadWriteOncePod
     resources:
       requests:
         storage: 5Gi

4. Delete a volume snapshot (DCT bookmark)

    kubectl delete -f  volumesnapshot.yaml

Lastly, if there are no volume snapshots or snapshot content objects in Kubernetes:

kubectl delete -f volumesnapshotclass.yaml

Volume cloning

The Kubernetes clone operation is equivalent to the provisioning of a child VDB. The Delphix K8s driver performs volume cloning by creating a new PVC from an existing PVC. Therefore, when the new PVC is claimed, a new VDB is also created which will be a child of the originally specified VDB. Follow the steps below to create and manage the volume clone. All configuration properties are available on the Helm chart parameters documentation page.

1. Create a volume clone.

   kubectl apply –f vdbclone.yaml

   Sample vdbclone.yaml:

   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: vdb-test-clone
     annotations:
       sourceDBName: aks-pg12
       envName: surrogate-host-env
       vdbGroupName: Untitled
       vdbRepositoryName: Empty vFile Repository
       vdbStageMountpath: /mnt/test-vdb
     spec:
       storageClassName: de-fs-storage
       accessModes:
         - ReadWriteOncePod
       resources:
         requests:
           storage: 5Gi
   dataSource:
     kind: PersistentVolumeClaim
     name: test-vdb

   Here test-vdb is a PVC that is already available and will be the clone's source volume.

2. Use the cloned PVC in the file. This step will enable the VDB and claim the persistent volume created in the prior step. For more information refer to the Provision and Enable section above.

   kubectl apply -f <container-manifest>.yaml

Disable and delete

• Disable VDB and release PVC: The disable VDB operation is handled alongside the release PVC command. This process is automatically triggered when the PVC is not claimed by a pod or container after creation or after a pod/container which is bound to this PVC, is destroyed.

  kubectl delete pod <pod-name>

• Delete VDB and PVC: The delete VDB operation is triggered when the PVC is deleted using the kubectl delete command.

  kubectl delete pvc <pvc-name>

Refresh the VDB

The Refresh/Rewind Operation for a Kubernetes VDB is an amalgamated workflow for kubectl commands and manual operations on the VDB resource on Data Control Tower.

1. Release Persistent Volume Claim (PVC): On the Kubernetes node, run the following command:


   Copy

   kubectl delete -f <container-manifest>.yaml

2. Go to the DCT UI and manually Refresh/Rewind the VDB.

3. Request Persistent Volume Claim (PVC) or VDB > Enable : Once the VDB Refresh/Rewind operation completes, go back to the Kubernetes node and run the following command:

   Copy

   kubectl apply -f <container-manifest>.yaml

Note: Alternatively, step 1 and step 3 can be achieved by running the Enable and Disable operations directly on the VDB via the UI or API.

Operators

The Delphix K8s driver is generalizable for any containerized database. Therefore, it is compatible with many database operators, such as the ones listed on OperatorHub.io. To implement, you typically will need to follow the Delphix K8s driver’s prerequisites as defined above, specify your newly created Delphix storage class in the database operator’s Helm chart, and then deploy as documented by the operator.

Delphix has not certified any specific operator. You are responsible for the support and integration of your chosen database operator. Delphix services are available if you need assistance.

Features

The Delphix K8s Driver enables users to provision and manage the state of their virtual datasets similar to standard Delphix virtual databases. The following standard dataset operations are supported today:

Other dataset operations, such as creating a bookmark, taking a snapshot, or refreshing a VDB, are not supported through the Delphix K8s Driver.

Videos

• Revolutionizing Enterprise Data Webinar (K8s Driver and Terraform)

Support

Delphix K8s driver and plugin support is included within your standard Delphix license agreement. Supported driver versions follow the support policy as outlined in KBA1003. For any questions, bugs, or feature requests, contact us via Delphix Support or the Delphix Community Portal.

The Delphix K8s driver only provides the data, not the database image or binaries. Therefore, you must connect the storage claim with the chosen Docker container. Delphix support cannot provide detailed guidance on how to do so. Follow the example documentation for directions on configuring the solution directly within a Helm chart and through an operator.
