Kubernetes Operator

The Delphix K8s Operator is a cloud-native Kubernetes Operator that brings Delphix database virtualization fully into the Kubernetes control plane. Rather than manually crafting PVC manifests and container deployments, you declare the desired state of a virtual database using Kubernetes Custom Resources (CRDs). The operator's controllers continuously reconcile the desired state against the actual state, orchestrating DCT, the CSI driver, and the PostgreSQL pod lifecycle automatically.

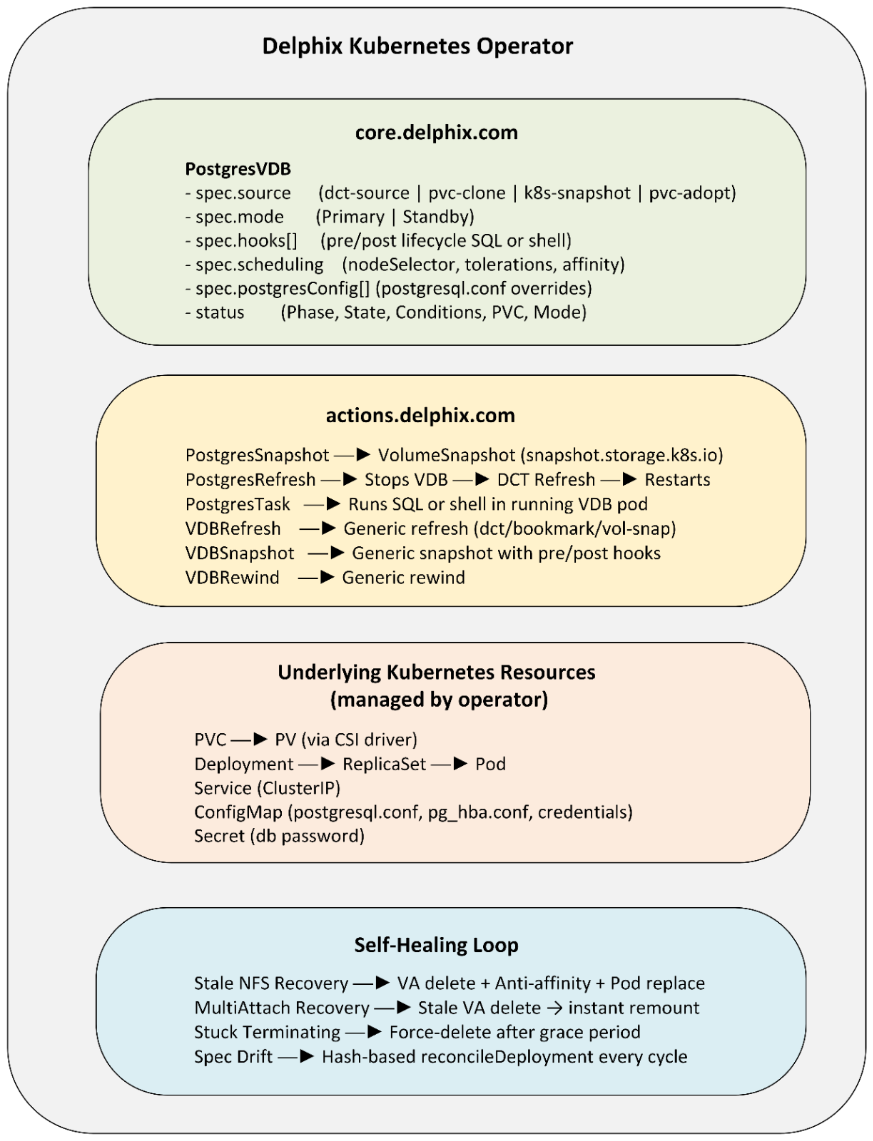

Operator components

Custom Resource Definitions (CRDs)

For detailed information on all parameters supported by the Delphix Kubernetes Operator Custom Resource Definitions (CRDs), refer to Kubernetes Custom Resource Definition (CRD)

The operator installs nine CRDs across two API groups:

core.delphix.com - virtual database lifecycle and actions.delphix.com - operational actions on VDBs

core.delphix.com - Virtual database lifecycle

actions.delphix.com - operational actions on VDBs

Provision and Enable (PostgreSQL - Operator path)

Unlike the Driver path which requires a separately authored PVC manifest and container deployment manifest the Operator path uses a single PostgresVDB resource manifest that declaratively specifies the full desired state. To provision and enable the virtual database, complete the following five steps:

1. Create a PostgresVDB manifest


apiVersion: core.delphix.com/v1alpha1
kind: PostgresVDB
metadata:
  name: my-postgres-vdb
  namespace: pg-operator
spec:
  enabled:true
  source:
    type: dct-source
    reference: "your-delphix-engine:your-dsource-name"  # engine:dsource
  vdbGroupName: "Untitled"
  envName: "dev-env"
  port: 5493
  image: "postgres:16.2"
  database:
    name: "postgres"
    user: "postgres"
    passwordSecretRef: my-db-password    # kubernetes opaque secret with password
  resources:
    requests:
      cpu: "500m"
      memory: "1Gi"
    limits:
      cpu: "2"
      memory: "4Gi"
  postgresConfig:
     - name: “shared_buffers”
        value: “256MB”
      - name: "max_wal_senders"
        value: “4”
      - name: "max_connections"
        value: “100”

2. Apply the manifest: kubectl apply -f my-postgres-vdb.yaml

3. Monitor the VDB lifecycle - use the following CLI commands to monitor the PostgresVDB resource and Operator activity:

   • Watch lifecycle status (phases: Pending → Provisioning → Configuring → Deploying → Ready):
     kubectl get postgresvdb my-postgres-vdb -n pg-operator -w

   • View detailed status and conditions: kubectl describe postgresvdb my-postgres-vdb -n pg-operator

   • Operator logs: kubectl logs -n pg-operator -l app.kubernetes.io/name=delphix-operator -f

4. Connect to the VDB ( port-forwarding):

• kubectl port-forward svc/my-postgres-vdb 5493:5493 -n postgres-operator

• psql -h localhost -p 5493 -U postgres -d postgres

5. Connect to the VDB ( ssh into pod)
   The pod name format is <deployment-name>-<replicaset-hash>-<pod-suffix>:

• my-postgres-vdb — Deployment name

• 69f7f5b5f — ReplicaSet hash (pod template hash, changes when the pod spec is updated)

• t9r8j — Pod's unique random suffix (changes every time the pod is recreated)

kubectl exec -it  pod/my-postgres-vdb-<replicaset-hash>-<pod-suffix> -n postgres-operator -- /bin/sh

VDB status phases

Supported source types

The operator supports three source types for PostgresVDB.spec.source.type:

Snapshots

The operator provides two CRDs for snapshots, depending on required consistency level.

VDBSnapshot - Volume-level snapshot (fast, crash-consistent):

apiVersion: actions.delphix.com/v1alpha1
kind: VDBSnapshot
metadata:
  name: my-vdb-snapshot
spec:
  vdbRef:
    kind: PostgresVDB
    name: my-postgres-vdb
    namespace: pg-operator

PostgresSnapshot - Application-consistent snapshot with backup coordination and LSN capture:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresSnapshot
metadata:
  name: my-postgres-snapshot
spec:
  vdbRef:
    kind: PostgresVDB
    name: my-postgres-vdb
  autoCheckpoint: true
  captureLSN: true
  preSnapshot:
    type: sql
    content: "SELECT pg_start_backup('pre-snapshot');"
  postSnapshot:
    type: sql
    content: "SELECT pg_stop_backup();"

Monitor snapshot status:

1. kubectl get postgressnapshot my-postgres-snapshot

2. kubectl describe postgressnapshot my-postgres-snapshot

Refresh the VDB (Operator path)

The Operator path for VDB refresh is fully automated with no manual DCT UI interaction required. The PostgresRefresh CRD orchestrates the complete workflow: stopping the VDB, performing the refresh via DCT, re-starting the VDB, and running pre/post hooks.

Refresh from latest snapshot:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresRefresh
metadata:
  name: my-vdb-refresh
  namespace: pg-operator
spec:
  vdbRef:
    name: my-postgres-vdb
    namespace: pg-operator
    kind: PostgresVDB
  snapshotRef:
     type: dct-snapshot
     name: "1-APPDATA_SNAPSHOT-1029"

Refresh from a specific snapshot:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresRefresh
metadata:
  name: my-vdb-refresh
  namespace: pg-operator
spec:
  vdbRef:
    name: my-postgres-vdb
    namespace: pg-operator
    kind: PostgresVDB
  snapshotRef:
     type: dct-snapshot
     name: "1-APPDATA_SNAPSHOT-1029"

Refresh from a specific DCT bookmark:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresRefresh
metadata:
  name: my-vdb-refresh-from-bookmark
spec:
  vdbRef:
    name: my-postgres-vdb
    namespace: pg-operator
    kind: PostgresVDB
  snapshotRef:
    type: dct-bookmark
    name: my-bookmark-name

Refresh from a Kubernetes VolumeSnapshot:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresRefresh
metadata:
  name: my-vdb-refresh-from-snapshot
spec:
  vdbRef:
    name: my-postgres-vdb
    namespace: pg-operator
    kind: PostgresVDB
  snapshotRef:
    type: volume-snapshot
    name: my-volume-snapshot-name

Refresh Workflow Phases:

Compare with the Driver path:

Rewind the VDB (Operator path)

apiVersion: actions.delphix.com/v1alpha1
kind: VDBRewind
metadata:
  name: my-vdb-rewind
  namespace: pg-operator
spec:
  vdbRef:
    kind: PostgresVDB
    name: my-postgres-vdb
    namespace: pg-operator
# Optional; omit for latest snapshot
snapshotRef:
    type: dct-snapshot
    name: "1-APPDATA_SNAPSHOT-1029"

Task Execution

The operator allows running arbitrary SQL or shell commands against a running PostgresVDB without manual pod exec:

apiVersion: actions.delphix.com/v1alpha1
kind: PostgresTask
metadata:
  name: check-schema
  namespace: pg-operator
spec:
  targetRef:
    kind: PostgresVDB
    name: my-postgres-vdb
    namespace: pg-operator
  type: sql
  content: "SELECT schemaname, tablename FROM pg_tables WHERE schemaname = 'public';"
  database: "appdb"
  retryPolicy:
    maxRetries: 3
    delay: 10

Lifecycle Hooks

PostgresVDB supports lifecycle hooks that run SQL or shell commands at key lifecycle stages:

Example — initialise schema after creation and clean up after refresh:

spec:
  hooks:
  # Hook 1: Simple command — creates a file on the VDB mount
  - name: "test-command-hook"
    stage: "post-create"
    type: "command"
    script: |
      #!/bin/bash
      echo "Hook executed at $(date)" > /tmp/hook-test.txt
      echo "Hostname: $(hostname)" >> /tmp/hook-test.txt
      echo "User: $(whoami)" >> /tmp/hook-test.txt
      cat /tmp/hook-test.txt
    timeoutSeconds: 30
    continueOnError: false

Disable and Delete (Operator path)

Disable VDB (stops the pod, retains the PVC and DCT VDB):

kubectl patch postgresvdb my-postgres-vdb -p '{"spec":{"enabled":false}}' --type=merge

Re-enable VDB:

kubectl patch postgresvdb my-postgres-vdb -p '{"spec":{"enabled":true}}' --type=merge

Delete VDB (destroys the pod, PVC, and DCT VDB):

kubectl delete postgresvdb my-postgres-vdb –n pg-operator

PVC Annotations (Organizational Metadata)

When the operator creates a PVC for a PostgresVDB, it automatically applies metadata annotations for governance and multi-team management. These are the same annotation keys used by the K8s Driver.

Query PVCs across namespaces by annotation:

kubectl get pvc -A -o json | jq '.items[] | select(.metadata.annotations.vdbGroupName=="production-databases") | .metadata.name'

kubectl get pvc -A -o json | jq '.items[] | select(.metadata.annotations.envName=="production") | .metadata.name'

kubectl get pvc -A -o json | jq '.items[] | select(.metadata.annotations.engineName=="delphix-engine-prod") | .metadata.name'

Query VDBs using labels :

# Find all VDBs from the same source DB (dct-source only)

kubectl get postgresvdb -A -l sourceDBName=my-postgres-vdb

# Find all VDBs cloned from the same source (PVC name, snapshot name, or DB name)

kubectl get postgresvdb -A -l sourceRef=my-postgres-vdb

# Find all VDBs in the same group

kubectl get postgresvdb -A -l vdbGroupName=my-group

# Find all VDBs in the same environment

kubectl get postgresvdb -A -l envName=my-env

# Find all VDBs on a specific engine

kubectl get postgresvdb -A -l engineName=my-engine

# Combine filters

kubectl get postgresvdb -A -l sourceDBName=my-postgres-vdb,envName=my-env
