Managing cipher suites for connector

Introduction

Connector cipher management is a feature designed to control the ciphers used during the handshake process when establishing a connection with the host connector. The connector is installed independently from the Delphix Continuous Data Engine. However, to use this feature hosts must be added to the Delphix Continuous Data Engine first.

The feature supports updating the cipher configuration of all the Windows hosts added to the Delphix Continuous Data Engine in one go.

Additionally, the Get Host Connector Cipher API is available for use, which retrieves the current list of cipher suites used by a specific host.

Requirements and compatibility

Connector version: This feature requires connector version 1.37.0.0 or higher.
Target environment: The API can be applied to Windows target environments that have been added to the Delphix Continuous Data Engine.
Host status: The host must be enabled for the action to be successful.
Cluster support: Windows target cluster environments are supported for the Exclude API. To use the Get Connector Cipher operation, the relevant Windows target environment must be selected from the environment endpoint.

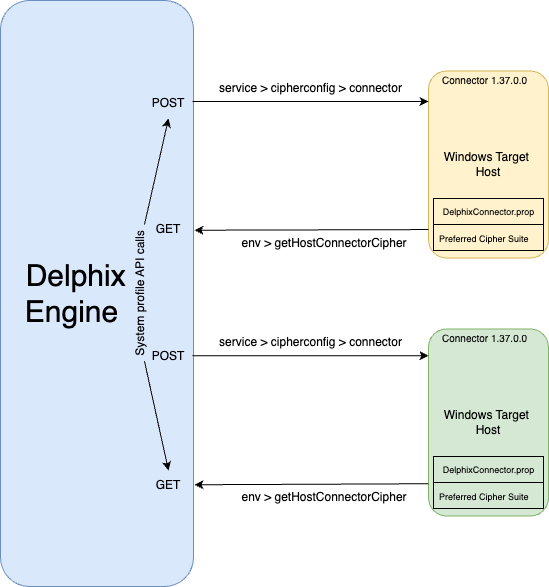

Design overview

The connector cipher management feature accepts a list of ciphers that need to be excluded and updates the PREFERREDCIPHERSUITES parameter in the connector property file accordingly. This update can be applied across all Windows hosts or only specified hosts if provided.

The API operates on all the Windows hosts when no specific host is mentioned. By connecting to each host through the connector connection itself, the API updates the preferred cipher list. This updated cipher suite will be then used for any subsequent connection establishment by the connector.

API functionality and application

The API can be accessed directly using the system user login and CLI, like 'sysadmin'.

API Object	Path	Type	Name	Description
ConnectorCiphers	`/service/cipherconfig/connector`	API Type	ConnectorCiphers	Ciphers configuration for connectors. Added list and create APIs.
SourceEnvironment	`/environment`	Operation	getHostConnectorCipher	Lists the ciphers configured in the host connector.

Copy

ip-10-110-233-199> service cipherconfig connector

ip-10-110-233-199 service cipherconfig connector> ls
Operations
create

ip-10-110-233-199 service cipherconfig connector> create

ip-10-110-233-199 service cipherconfig connector create *> set excludeCiphers="TLS_ECDH_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384"
ip-10-110-233-199 service cipherconfig connector create *> set environments=win-tgt-cc-1.dlpxdc.co,win-tgt-cc-2.dlpxdc.co

ip-10-110-233-199 service cipherconfig connector create *> commit
    Dispatched job JOB-23
    CONNECTOR_CIPHERS_EXCLUDE job started.
    CONNECTOR_CIPHERS_EXCLUDE job completed successfully.

ip-10-110-233-199 service cipherconfig connector> ip-10-110-233-199> environment
ip-10-110-233-199 environment> select win-tgt-cc-1.dlpxdc.co

ip-10-110-233-199 environment 'win-tgt-cc-1.dlpxdc.co'> getHostConnectorCipher

ip-10-110-233-199 environment 'win-tgt-cc-1.dlpxdc.co' getHostConnectorCipher *> commit
    TLS_DHE_PSK_WITH_AES_256_GCM_SHA384,
    TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256,
    TLS_ECDHE_PSK_WITH_CHACHA20_POLY1305_SHA256,
    TLS_DHE_PSK_WITH_AES_128_GCM_SHA256,
    TLS_DHE_PSK_WITH_CHACHA20_POLY1305_SHA256,
    TLS_PSK_DHE_WITH_AES_128_CCM_8,
    TLS_DHE_RSA_WITH_AES_256_CCM,
    TLS_DHE_PSK_WITH_AES_256_CCM,
    TLS_ECDHE_ECDSA_WITH_AES_128_CCM_8,
    TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,
    TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,
    TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,
    TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,
    TLS_DHE_RSA_WITH_AES_256_GCM_SHA384,
    TLS_DHE_RSA_WITH_AES_128_GCM_SHA256,
    TLS_DHE_DSS_WITH_AES_256_GCM_SHA384,
    TLS_DHE_DSS_WITH_AES_128_GCM_SHA256,
    TLS_AES_128_GCM_SHA256,
    TLS_AES_256_GCM_SHA384,
    TLS_CHACHA20_POLY1305_SHA256,
    TLS_AES_128_CCM_SHA256,
    TLS_AES_128_CCM_8_SHA256,
    TLS_ECDH_RSA_WITH_AES_128_CBC_SHA,
    TLS_RSA_WITH_AES_128_CBC_SHA,
    TLS_ECDH_RSA_WITH_AES_256_CBC_SHA,
    TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA,
    TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,
    TLS_ECDH_RSA_WITH_AES_128_CBC_SHA256,
    TLS_RSA_WITH_AES_128_CBC_SHA256,
    TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA,
    TLS_RSA_WITH_AES_256_CBC_SHA,
    TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,
    TLS_ECDH_RSA_WITH_AES_256_CBC_SHA384,
    TLS_RSA_WITH_AES_256_CBC_SHA256,
    TLS_DHE_DSS_WITH_AES_128_CBC_SHA,
    TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA,
    TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA256,
    TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,
    TLS_DHE_DSS_WITH_AES_256_CBC_SHA,
    TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA,
    TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA384,
    TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384,
    TLS_ECDH_RSA_WITH_AES_128_GCM_SHA256,
    TLS_RSA_WITH_AES_128_GCM_SHA256,
    TLS_ECDH_RSA_WITH_AES_256_GCM_SHA384,
    TLS_RSA_WITH_AES_256_GCM_SHA384,
    TLS_DHE_DSS_WITH_AES_128_CBC_SHA256,
    TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256,
    TLS_DHE_DSS_WITH_AES_256_CBC_SHA256,
    TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384,
    TLS_ECDH_ECDSA_WITH_AES_128_GCM_SHA256,
    TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384

ip-10-110-233-199 environment 'win-tgt-cc-1.dlpxdc.co'>

Adding new Windows target hosts to the Delphix Continuous Data Engine requires making a separate API call. The cipher suites configuration is reset to default when the connector is reinstalled or upgraded. In this case, the exclude ciphers API must be called again as needed.

Cipher Suites FAQs

1. From which version of the connector are these APIs supported?

Connector versions 1.27.0.0 and 1.37.0.0.

2. What happens if the host has a lower version of the connector and the ConnectorCiphers API is used without specifying a specific environment?

The ConnectorCiphers API will exclude ciphers for eligible environments and will return an error for hosts with connector versions lower than 1.37.0.0.

3. Can the Windows cluster environment be used with the Connector Cipher API?

Yes, when the Windows cluster environment is used, the Connector Cipher API runs on all nodes associated with the cluster.

4. Does the ConnectorCiphers API run on disabled hosts?

No, the ConnectorCiphers API will return an error for environments that are disabled.

5. How can you test if the Exclude Cipher API ran successfully?

After executing the Exclude Cipher API, navigate to environment > select "env" > getHostConnectorCipher > commit. You can validate the current available ciphers from the host associated with the environment.

6. How can these APIs be accessed?

These APIs can be accessed directly using the system user login and via CLI. There are no plans to integrate this with the GUI.

7. What happens when the connector is reinstalled on the host?

The user needs to rerun the Connector Cipher API to remove undesired ciphers.

8. What happens when a new environment is added to the engine?

If any cipher suites need to be removed, the Connector Cipher API needs to be used.

9. What happens when the environment is deleted and added again to the engine?

Check the current list of ciphers using getHostConnectorCipher and plan to use the Connector Cipher API if necessary.

10. What happens when the environment is added to more than one engine?

Since the host connector is the same, the Connector Cipher API can be run from any of the engines where the environment is added. Running the API from multiple engines poses no issues, as the API will only remove ciphers if they are present.

11. If the Connector is upgraded "improperly" and the properties file is reverted. How do we proceed?

Check the current list of ciphers using getHostConnectorCipher and plan to use the Connector Cipher API if necessary.
