Delphix session protocol test from primary engine to replication engine

Delphix uses the DSP protocol to communicate between primary and replication engines.

1. Log in to Delphix Management application using an Engine administrator account.

2. Click the Resource menu and select Network Performance Tool.

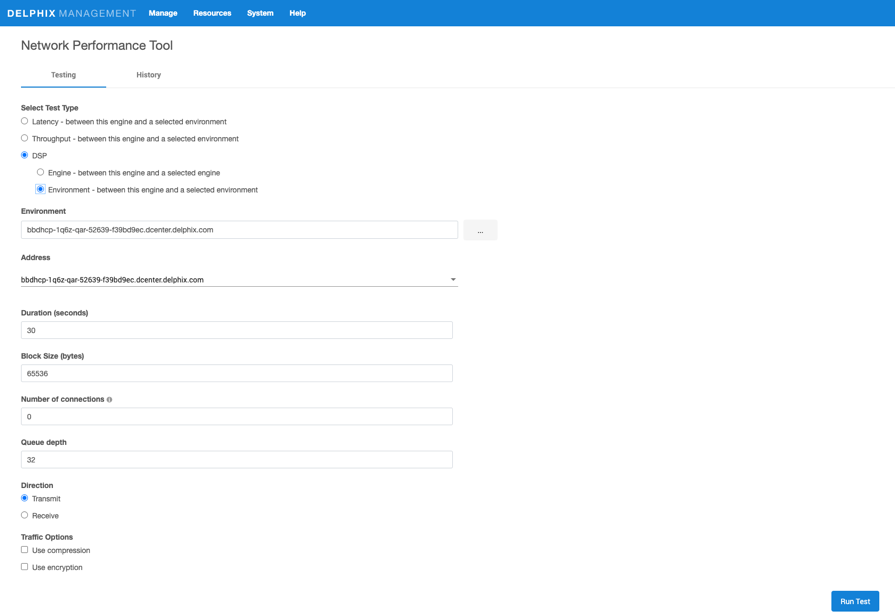

3. Select the Delphix Session Protocoloption.

   1. Select Engine option to run the DSP test between a primary engine and a replication engine.

   2. Provide hostname or IP address of the replication engine.

   3. Provide admin user credentials for the replication engine. The user name must not include @DOMAIN or other qualifiers.

   4. Enter a Duration in seconds (30 default).

   5. Enter Block Size in bytes.

   6. Enter the Number of Connections (optional).

   7. Provide Queue Depth.

   8. Select Direction - Transmit or Receive.

   9. Enter Traffic Options by selecting either Use compression or Use encryption.

   10. Click the Run Test button.

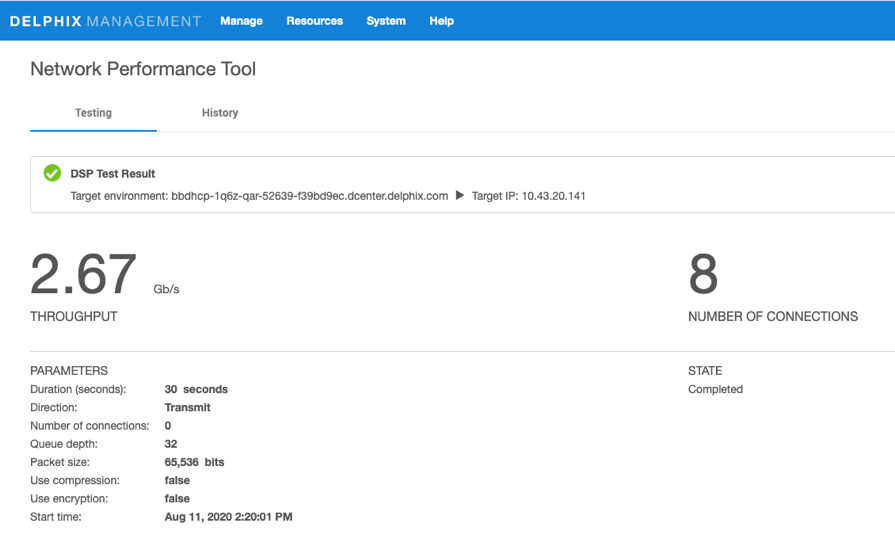

4. View the test results.
