Naming requirements
This section describes the naming requirements for Masking Engine objects which are allowed to be created/renamed manually.
Affected configurable objects
|
configurable objects |
|---|
|
algorithm |
|
application |
|
connector |
|
domain |
|
environment |
|
file format |
|
job |
|
profiling group |
|
record type |
|
role |
|
rule set |
For all of the above:
-
Leading/trailing white space is not allowed
-
The following special characters are not allowed:
|
Symbol |
Name |
|---|---|
|
[ |
open bracket |
|
] |
close bracket |
|
( |
open parenthesis |
|
) |
close parenthesis |
|
{ |
open brace |
|
} |
close brace |
|
~ |
tilde |
|
! |
exclamation mark |
|
@ |
at |
|
# |
pound |
|
$ |
dollar |
|
% |
percent |
|
^ |
carat |
|
* |
asterisk |
|
" |
quote |
|
? |
question mark |
|
: |
colon |
|
; |
semi-colon |
|
, |
comma |
|
/ |
forward slash |
|
\ |
back slash |
|
\\ |
double back slash |
|
` |
back quote |
|
+ |
plus |
|
= |
equal |
|
< |
less than |
|
> |
greater than |
|
' |
single quote |
|
| |
pipe |
Upgrade
During an upgrade of a Masking Engine to a 6.0 or later release, a name with leading or trailing white space will be automatically trimmed, and a counter value might be appended to the end of the name to prevent a naming conflict. For example:
|
pre-upgrade name |
post-upgrade name |
upgrade change |
|---|---|---|
|
"alg_SecureLookup" |
"alg_SecureLookup" |
no change |
|
" alg_SecureLookup" |
"alg_SecureLookup1" |
leading white space trimmed and counter value appended |
|
"alg_SecureLookup " |
"alg_SecureLookup2" |
trailing white space trimmed and counter value appended |
If any name from the above-mentioned "configurable entities" table has a restricted special character - an upgrade will fail with the corresponding error message.
Maximum name lengths

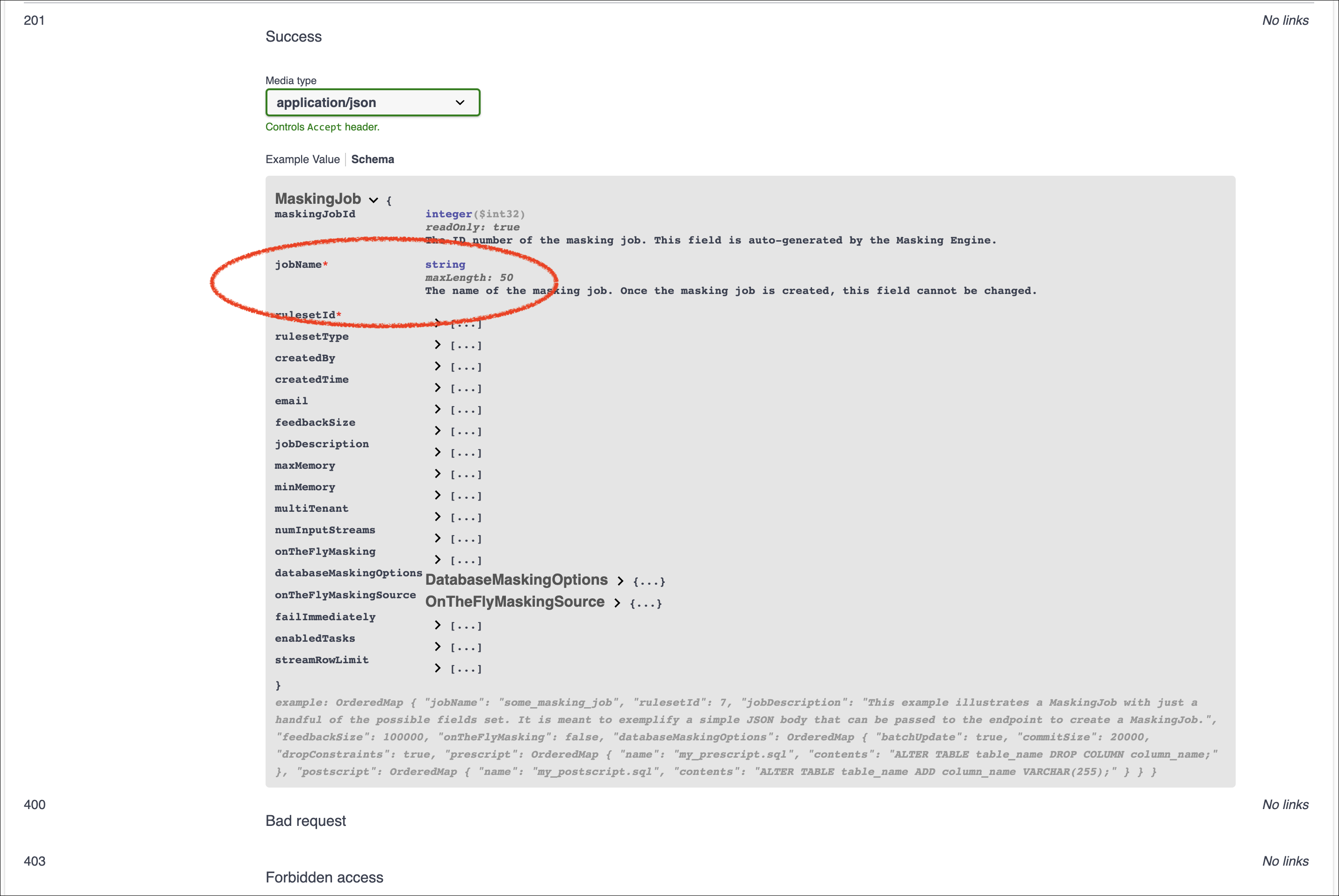

Access the API client to find out the maximum name length for a particular object by navigating to http://YourMaskingEngine.YourDomain.com/masking/api-client to access the API client for the engine.
Create/rename
If an attempt is made to create a new entity (or to modify the name of the existing one) with leading or trailing white space or any of the special characters listed above, the operation will fail on a 6.0 or later release with a corresponding error message.
Environment export/import
If any entity name exported from a pre-6.0 version contains leading or trailing white spaces or the special characters listed above, the import operation will fail on a 6.0 or later release with a corresponding error message.
Sync
If a sync bundle from a pre-6.0 version contains leading or trailing white space or any of the special characters listed above, then the Sync import operation will fail on a 6.0 or later release, with a corresponding error message.
